Atomos sumo

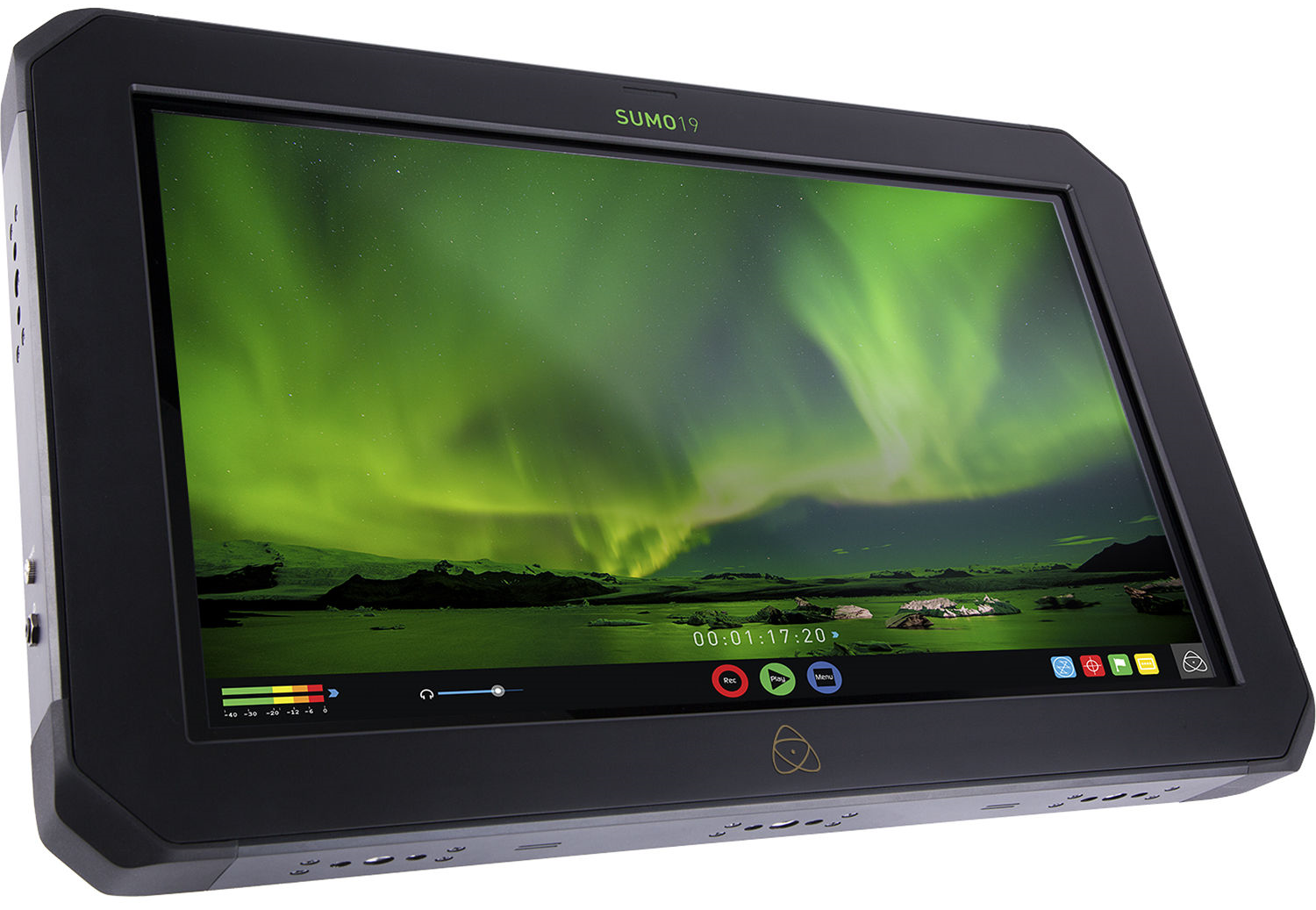

The Atomos Sumo is a 19" HDR studio monitor with 10 stops dynamic range, 10-bit processing, and X-Rite calibration.  It can accept Log, PQ, or HLG signals from grading software and display HDR.

BUILT FOR PRODUCTION

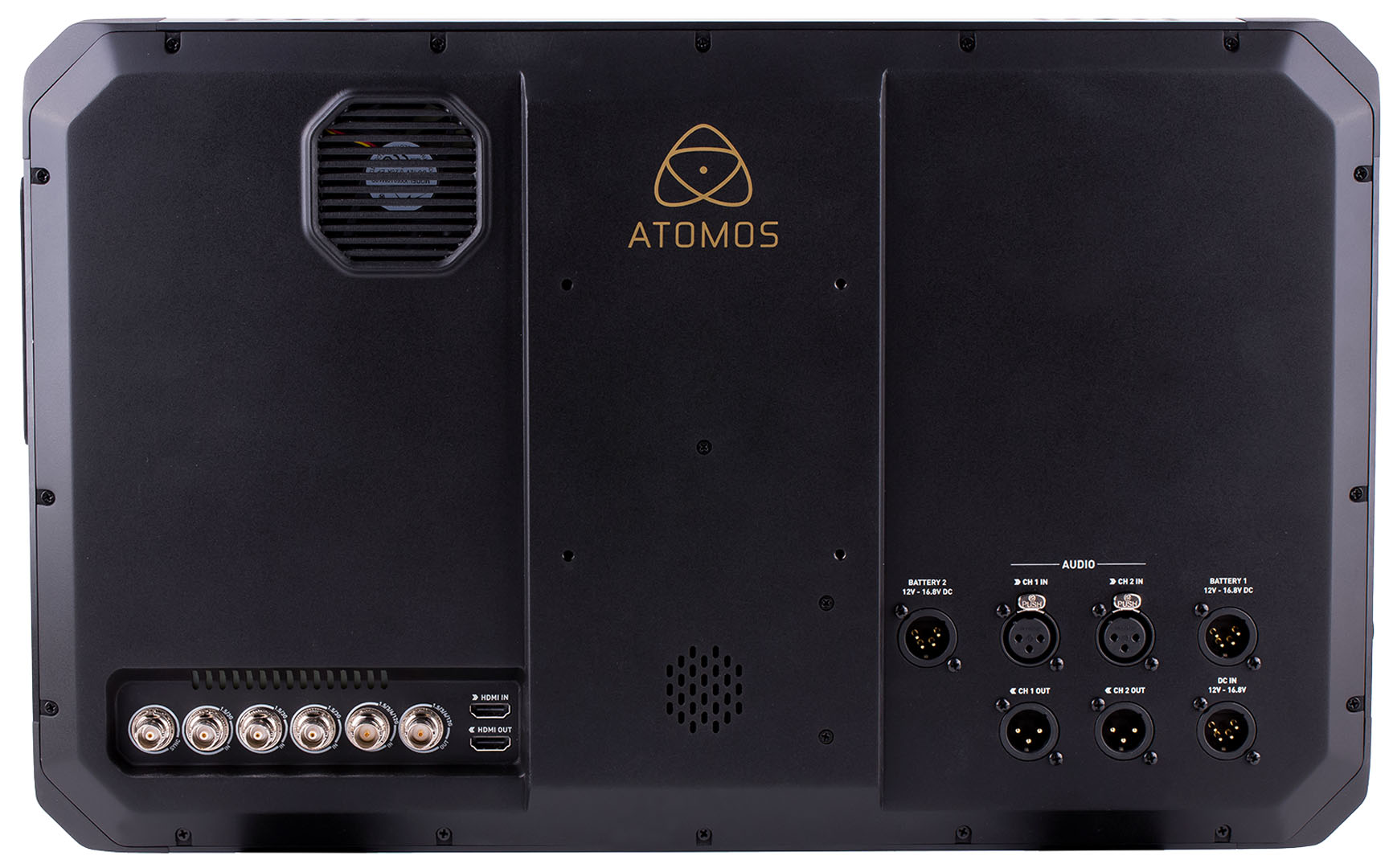

The Aluminium alloy chassis with built-in armor houses ten mounting points around the top/bottom/side, a rear panel VESA mount and an included stand for a variety of mounting configurations. Alongside of the XLR connections for power and balanced audio, there is a 3.5mm stereo headphone jack and built-in speakers.  The optional mounting plates connect dual V-Lock or Anton Bauer batteries work in tandem with our patent pending continuous power system. This allows batteries to be hot swapped to ensure you are never without power in the field.

QUAD SDI & HDMI 2.0 IN/OUT

Seamlessly connect any SDI or HDMI device and convert between HDMI 2.0 and SDI (3G QuadLink/6G/12G) in any combination. Quad SDI inputs connect cameras with multiple 1.5 or 3G SDI outputs without the need for converters. HDMI 2.0 supports up to 4Kp60 input/output along with support for Genlock and LTC timecode.

PROFESSIONAL RECORDING

12-bit Raw, 10-bit ProRes/DNxHR up to 4Kp60

Capture the RAW output from Sony FS5/FS7/FS700, Canon C300MKII/ C500 or Panasonic Varicam LT over SDI up to 12-bit 4Kp30 as CDNG or 10-bit Apple ProRes / Avid DNxHR up to 4Kp60 / 2Kp240 depending on the camera’s capability. The processing power of Sumo preserves pristine quality direct from the sensor with data rates of up to 3.2 Gbps.

MONITOR. SWITCH. RECORD.

Live Switch* and Record up to four 1080/60p channels, 4 x ISO record and playback

Make working with multi-cam a breeze. With a free future firmware update, you will be able to switch and mixing a live recording and stream or record 4 x HD ISO recordings using the QuadLink SDI connections. Switch between feeds on screen with cueing, cross fade and hard cuts from the locked sources or tag and adjust final edits with advanced metadata tagging preserving ISO feeds, with the desired final result infinitely editable.
