videon sonora video encoder and decoder

Sonora encodes an HDMI source using H.264 compression and has the power to stream 1080p video point-to-point on an internal network, point-to-point over the WAN, multicast to a local network, to a decoder located on a different network, and to online video platforms. Sonora can also be used to decode as well as encode a stream.

Video Encoding/Decoding
Dual Core 1.2GHz Intel® AtomTM Processor
Input Resolutions
1080i60, i59.94, i50, p60, p59.94, p30, p29.97, p25; 720p60, p59.94, p50
Encode Resolutions
1080i60, i59.94, i50, p30, p29.97, p25; 720p60, p59.94, p50
Output Resolutions
1080i60, i59.94, i50, p60, p59.94, p50, p30, p29.97, p24, p23.98; 720p60, p59.94, p50; 576i50, p50; 480i59.94, p59.94
Compression: H.264, Baseline, Main, High
Bit rates: 250kbps-20Mbps; Rate control: Variable, Constant
Encode latency ~1sec; Decode latency ~250ms

Audio Encoding/Decoding
Encode: MPEG-4 AAC-LC in ADTS 64-320kbps; Decode: MPEG-1- Layer 2, MPEG-2/MPEG-4 AAC in ADTS/LOAS
Encode Sampling Freq: 32, 44.1, 48KHz; Decode: 48 KHz

General
+12V Input; under 15 Watts total
Dimensions: 1.75” x 6.54” x 6.2”
Action Button to start/stop RTMP encoding and for Factory Reset

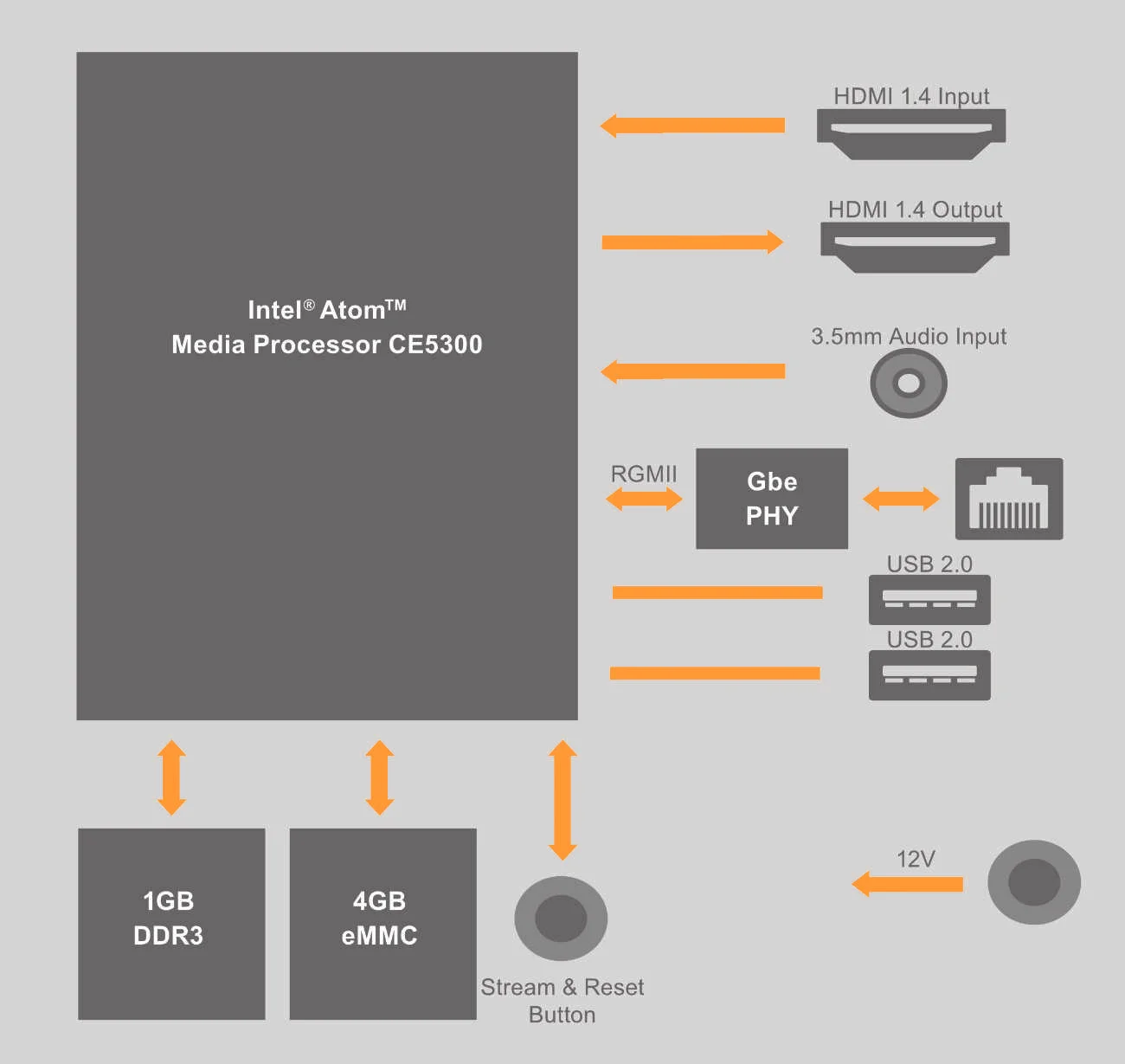

I/O
Video: HDMI v1.4a input and output
2 USB 2.0 connectors
Audio embedded in HDMI
3.5mm Analog Audio input
10/100/1000 Ethernet (RJ-45)

Streaming Capabilities
Unicast and Multicast
WowzaTM, UStream, YouTube Live, DaCast
RTMP
RTP over UDP, Raw UDP
Up to 2x Unicast and 1x Multicast simultaneous channel output

Network and Control
REST API integrates with third-party controllers and applications
Full-featured web browser based UI
Designed for tablets and desktops
Encoder and decoder configuration for unicast, multicast and RTMP
DHCP (Default) / Static IP Address
Command and Control: HTTP
Auto-detect and discover other Videon encoder and decoder units on subnet
